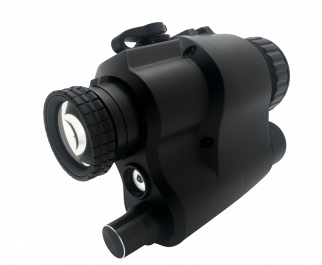

SVG5

50W Ultra-Low-Light Black-White Night Vison Monocular

Feature:

Product description

The SVG5 digital night vision Monocular adopts a 1 inch large-target-surface super-sensitive CMOS sensor, processed by an AI ISP (Image Signal Processor) image engine. The AI algorithm enhances imaging performance in low-light to no-light environments; without supplementary lighting such as infrared or laser sources, it can achieve imaging under an illumination of 1×10⁻⁴ lux (even at night). Additionally, its imaging range is not limited by the distance of illuminators, giving it a unique advantage in large-scale night scenarios.
This monocular is powered by a lithium battery and can also be supplied with power via an auxiliary DC 5V battery pack or external power source. It features low power consumption and a compact structure. It can be used handheld, head-mounted, or mounted on other devices, and is suitable for professional scenarios.

Ultra-Low-Light Imaging: Clearly identifies humans, animals, and objects in 0.0001 Lux conditions (moonless, starless wilderness).
Dual Imaging Modes: Available in black-and-white or full-color imaging to suit various mission needs, with full-color as the emerging standard.
Extended Battery Life: Replaceable 18650 battery or external battery pack for over 24 hours of continuous operation.
Multi-Functional Recording: Enables video recording and photography under low-light conditions for evidence collection, reconnaissance, and documentation.
AI Image Enhancement: AI ISP engine delivers ghost-free, low-noise, and sharper night vision.
Stealth Operation: Operates without active illumination to avoid detection.
Easy Operation: One-button control with adjustable brightness, contrast, and frame rate settings.

Main Parameter Item	Specification Detail
Master Chip	Dual-core ARM Cortex A55 with built-in NPU processing engine
Sensor	50W 1 Inch 18 μm Progressive Scan CMOS
Min Illumination	0.0001 Lux
Display Screen	Micro OLED 800*600 0.5"
Image Output	720P@1280*720, with electronic stabilization
Video Output	XVGA 800*600@25~60fps，1080P @25~60fps
Storage	The built-in storage has a maximum capacity of 256GB supports file transfer via a data cable.
Power	1* 18650 battery Supports IP67 aviation plug 5V 3A charging Features overcharge, reverse connection, and short-circuit protection
Working environment	-20℃~60℃, humidity less than 95% (no condensation)
Waterproof Level	IP67, Metal Housing
Product Size	115mm * 46mm * 80mm
Produc Weight	Without battery <245g
Operate Language	Simplified Chinese, English
Package detail	body monocular, left & right Arms, USB cable, 18650 battery charger
General	Supports optional WiFi module, optional standard dump bucket bracket, and customized bracket
